特殊板模與配件尺寸
限用、現省、立馬賺
| No. | 項目 Formwork Unit | 產品編碼 Product code | 規格 Size(cm) | 材質 Material | 備註 Notes |
|---|---|---|---|---|---|

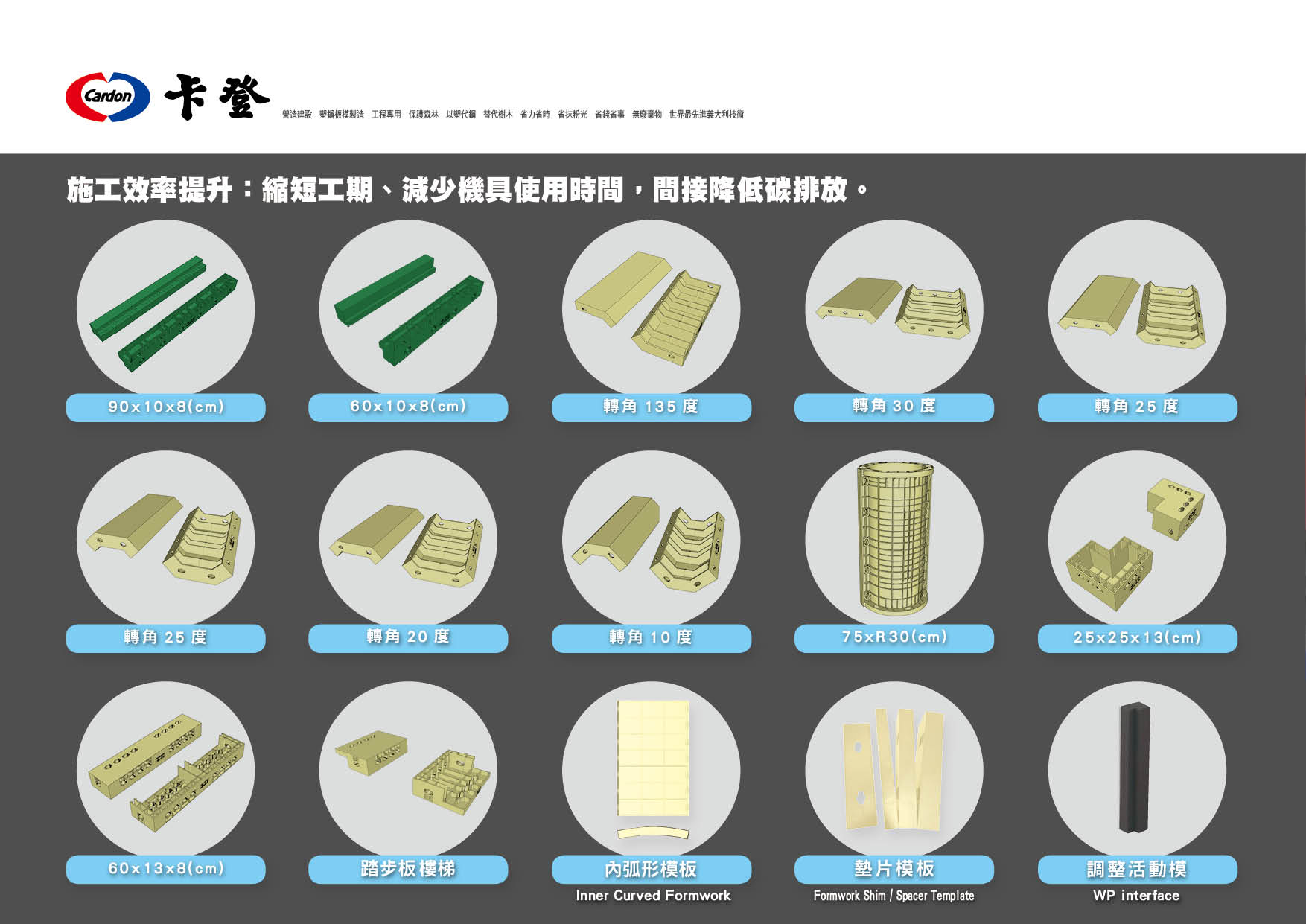

| 1 | AB萬能活動板 interface | DBA-90-10-8 | 90x10x8 | ABS | |
| 2 | AB萬能活動板 interface | DBA-60-10-8 | 60x10x8 | ABS | |
| No. | 項目 Formwork Unit | 產品編碼 Product code | 規格 Size(cm) | 材質 Material | 備註 Notes |
| 1 | 收縫邊條板1CM Compensation Elements | ||||
| 2 | 收縫邊條板3CM Compensation Elements | ||||
| 3 | 收縫邊條板4CM Compensation Elements | ||||
| 4 | 收縫邊條板5CM Compensation Elements | ||||
| No. | 項目 Formwork Unit | 產品編碼 Product code | 規格 Size(cm) | 材質 Material | 備註 Notes |
| 1 | 收尾梯行模 | DBA-30-8-10 | 30x8x10 | ||
| 2 | 收尾梯行模 | DBA-30-8-20 | 30x8x20 | ||
| 3 | 收尾梯行模 | DBA-30-8-30 | 30x8x30 | ||
| No. | 項目 Formwork Unit | 產品編碼 Product code | 規格 Size(cm) | 材質 Material | 備註 Notes |
| 1 | 轉角135度 | DBC-24.7-75-7 | 24.7x75x7 | ||
| 2 | 轉角30度 | DBC-42.4-75-8 | 42.4x75x8 | ||
| 3 | 轉角25度 | DBC-35.4-75-8 | 35.4x75x8 | ||
| 4 | 轉角20度 | DBC-28.3-75-8 | 28.3x75x8 | ||
| 5 | 轉角15度 | DBC-21.2-75-8 | 21.2x75x8 | ||
| 6 | 轉角10度 | DBC-15-75-7 | 15x75x7 | ||
| 7 | 轉角 | 75x10x17.7 | |||
| 8 | 轉角 | 75x10x10 | |||
| 9 | 轉角 | 75x15x15 | |||
| 10 | 轉角 | 75x20x20 | |||
| 11 | 轉角 | 75x25x25 | |||
| 12 | 轉角 | 75x30x30 | |||
| 13 | 轉角 | 75x35x35 | |||
| No. | 項目 Formwork Unit | 產品編碼 Product code | 規格 Size(cm) | 材質 Material | 備註 Notes |
| 1 | 圓弧 | 75xR20 | |||
| 2 | 圓弧 | 75xR30 | |||
| 3 | 圓弧 | 75xR45 | |||
| No. | 項目 Formwork Unit | 產品編碼 Product code | 規格 Size(cm) | 材質 Material | 備註 Notes |
| 1 | 防撞牆 | 防撞牆R角 | |||
| 2 | 防撞牆 | 防撞牆L角 | |||
| No. | 項目 Formwork Unit | 產品編碼 Product code | 規格 Size(cm) | 材質 Material | 備註 Notes |
| 1 | 可調方柱 | 60x67.5 | |||
| 2 | 可調方柱 | 60x72.5 | |||
| 3 | 可調方柱 | 60x72.5 | |||
| No. | 項目 Formwork Unit | 產品編碼 Product code | 規格 Size(cm) | 材質 Material | 備註 Notes |
| 1 | 圓柱 | R-30 | 75xR30 | ||
| 2 | 圓柱 | R-35 | 75xR35 | ||
| 3 | 圓柱 | R-40 | 75xR40 | ||
| 4 | 圓柱 | R-45 | 75xR45 | ||
| No. | 項目 Formwork Unit | 產品編碼 Product code | 規格 Size(cm) | 材質 Material | 備註 Notes |
| 1 | 六角護坡系列 | 中空植草護坡 邊長20X對角38X厚8 |
|||
| 2 | 路沿石系列 | 條紋60x30x6 | |||
| 3 | 路沿石系列 | 防撞坡行側石 60x28x16 |
|||
| No. | 項目 Formwork Unit | 產品編碼 Product code | 規格 Size(cm) | 材質 Material | 備註 Notes |

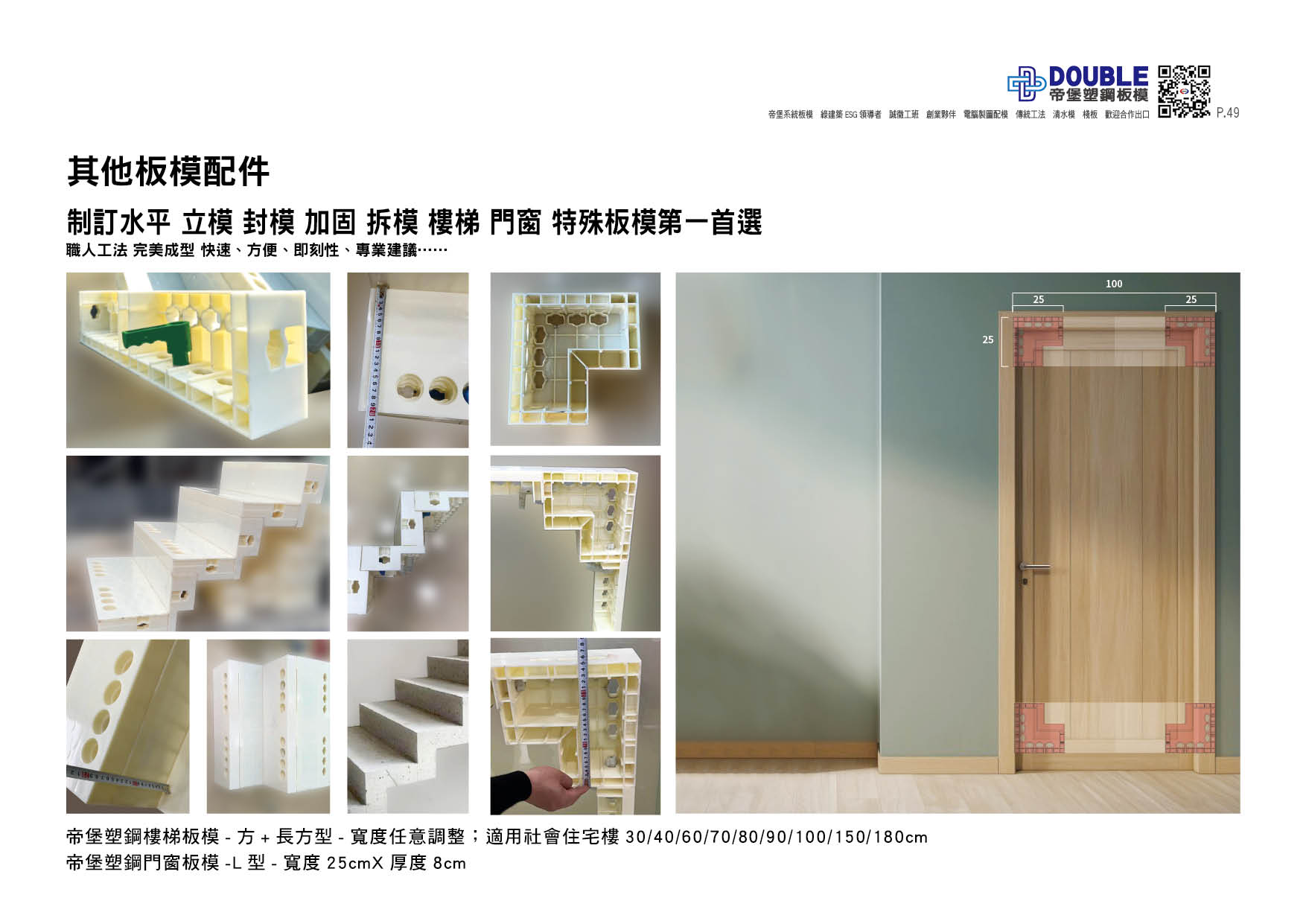

| 1 | 門窗角 Corner Formwork for Doors and Windows | DBW-25-25-13 | 25x25x13 | ||
| 2 | 門窗角轉角 Corner Formwork for Doors and Windows | DBW-60-13-8 | 60x13x8 | ||
| No. | 項目 Formwork Unit | 產品編碼 Product code | 規格 Size(cm) | 材質 Material | 備註 Notes |

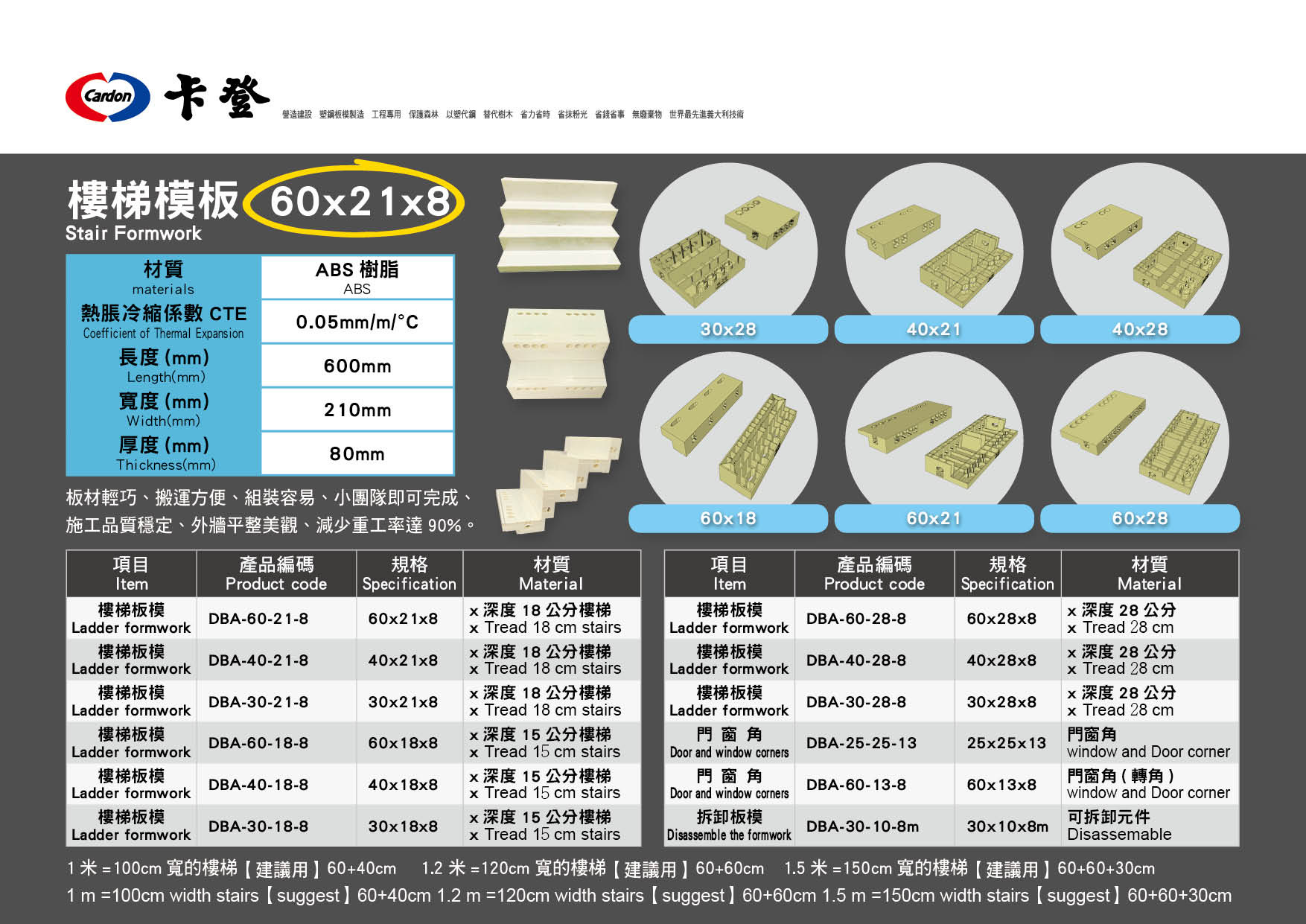

| 1 | 踏步板高度 21公分樓梯 Stair Formwork | DBS-60-21 | 60x21x8 | ||
| 2 | 踏步板高度 21公分樓梯 Stair Formwork | DBS-40-21 | 40x21x8 | ||
| 3 | 踏步板高度 21公分樓梯 Stair Formwork | DBS-30-21 | 30x21x8 | ||
| 4 | 踏步板高度 18公分樓梯 Stair Formwork | DBS-60-18 | 60x18x8 | ||
| 5 | 踏步板高度 18公分樓梯 Stair Formwork | DBS-40-18 | 40x18x8 | ||
| 6 | 踏步板高度 18公分樓梯 Stair Formwork | DBS-30-18 | 30x18x8 | ||
| 7 | 深(寬)度 28公分樓梯 Stair Formwork | DBS-60-28 | 60x28x8 | ||
| 8 | 深(寬)度 28公分樓梯 Stair Formwork | DBS-40-28 | 40x28x8 | ||
| 9 | 深(寬)度 28公分樓梯 Stair Formwork | DBS-30-28 | 30x28x8 | ||
| No. | 項目 Formwork Unit | 產品編碼 Product code | 規格 Size(cm) | 材質 Material | 備註 Notes |

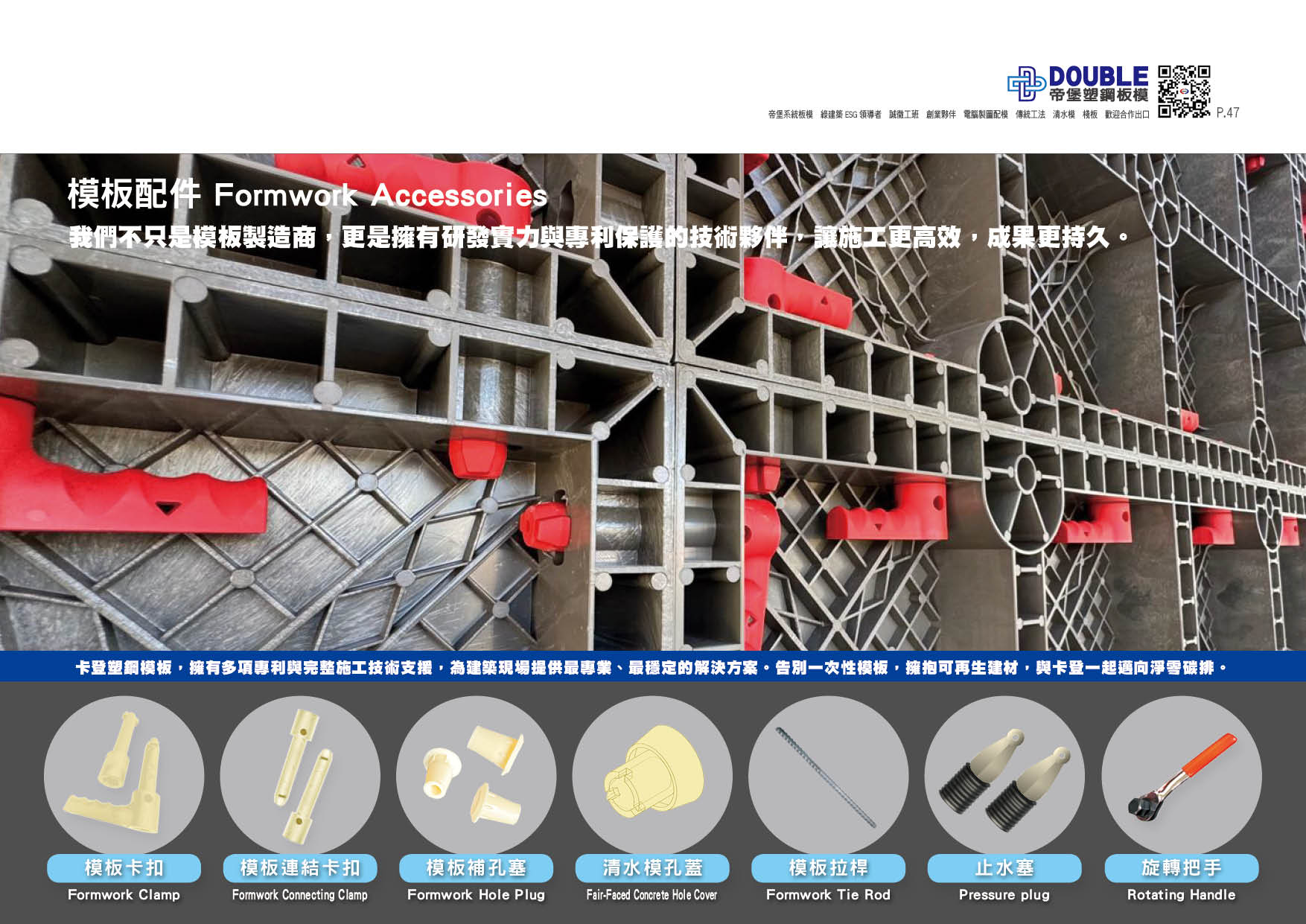

| 1 | 配件 | ||||
| 2 | 六角孔卡扣 | ||||
| No. | 項目 Formwork Unit | 產品編碼 Product code | 規格 Size(cm) | 材質 Material | 備註 Notes |
| 1 | 標準卡扣 | 3.5CM | |||
| 2 | 標準卡扣 | 5CM | |||
| 3 | 標準卡扣 | 6CM | |||
| 4 | 標準卡扣 | 6.5CM | |||
| 5 | 標準卡扣 | 8CM | |||
| 6 | 無把手卡扣 | 8CM | |||
| 7 | 無把手卡扣 | 9CM | |||
| 8 | 無把手卡扣 | 10CM | |||
| 9 | 無把手卡扣 | 11CM | |||
| 10 | 無把手卡扣 | 12CM | |||
| 11 | 無把手卡扣 | 13CM | |||
| No. | 項目 Formwork Unit | 產品編碼 Product code | 規格 Size(cm) | 材質 Material | 備註 Notes |

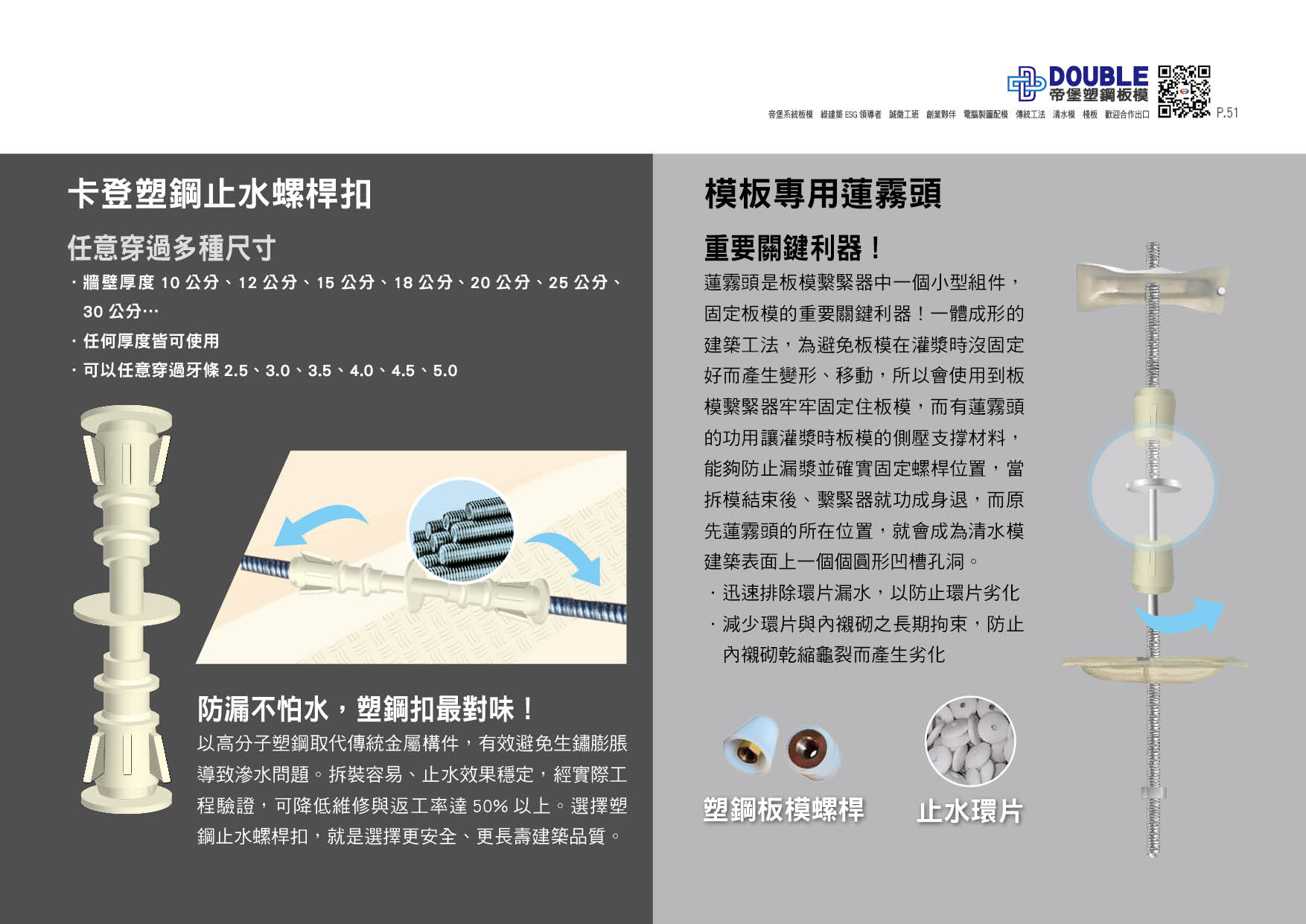

| 1 | 塑鋼板模孔塞 | 直徑1.45cm x長度1.55 | |||
| 2 | 塑鋼板模孔塞 | 直徑2.53cm x長度2.43cm | |||
| 3 | 塑鋼板模孔塞 | 直徑4.47cm x長度1.8cm |
